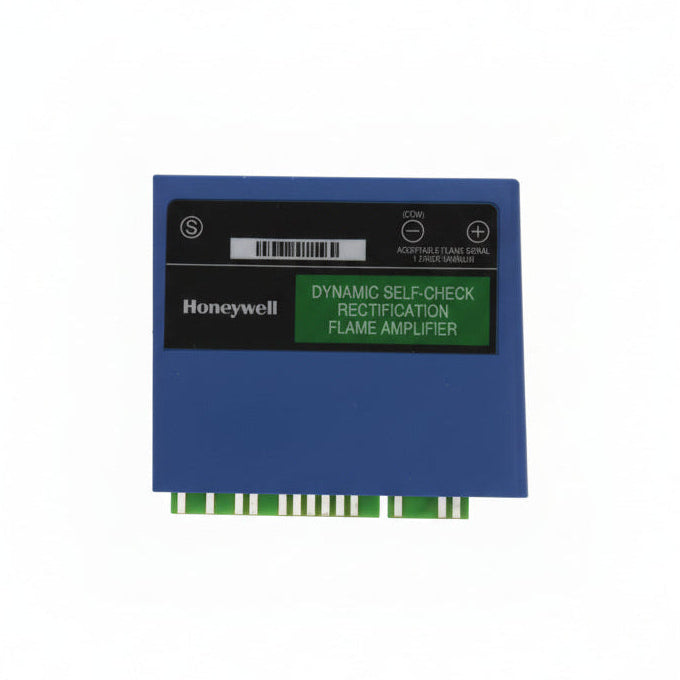

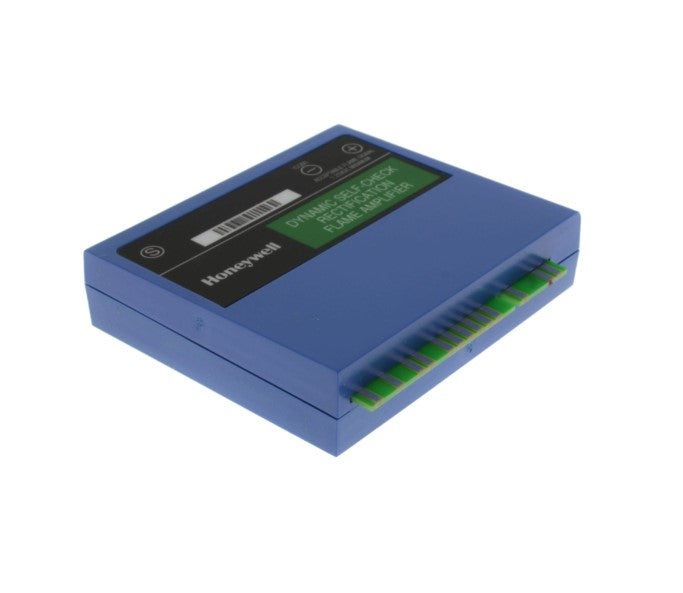

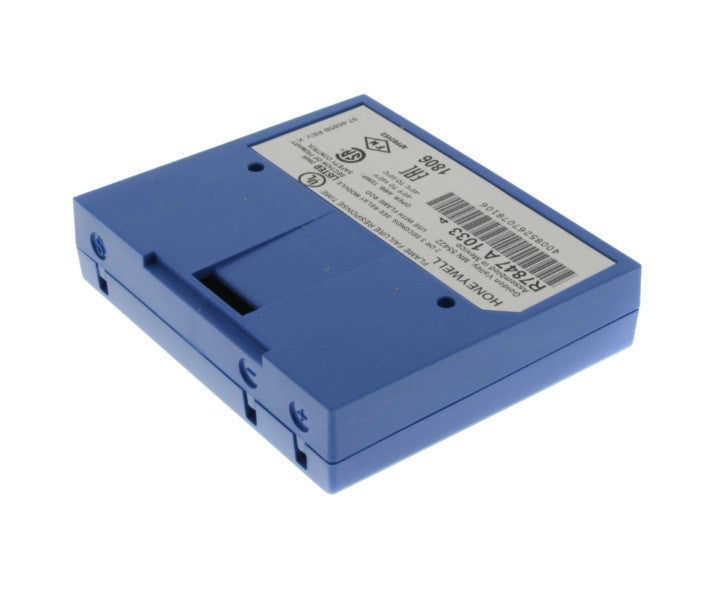

R7847A1033 - Flame Rod Card Amplifier

MPN: R7847A1033

Honeywell AMPLIFIER CARD - Flame Rod Amplifier, 3 Second FFRT, Flame Rod/Rectifying-Solid state plug-in amplifiers

• Flame failure response time of 0.8 or 3.0 seconds.
• Flame signal strength ranges from 0.0 to 5.0 Vdc.
• Plug into 7800 relay module through printed circuit board edge connector keyed for proper orientation.
• Flame signal test jacks to measure amplifier flame signal voltage.
• Color-coded labels identify flame detection type. Dynamic Self-Check Amplifier test the detectors and all electronic components in the flame detection system 7800 SERIES relay module locks out on safety shutdown with flame detection system failure.
• Compatible with existing Honeywell flame detectors (order separately).
• Type: Rectification
• Flame Failure Response Time (sec): 2.0 sec or 3.0 sec
• Self Checking: None (standard)
• Use With Primary Safety Control: 7800 SERIES Relay Modules
• Use With Flame Sensor: Gas: Rectifying Flame Rods C7004, C7005, C7007, C7008, C7009, Q179
• Use With Flame Sensor: Gas, oil, coal: Ultraviolet Flame Sensor C7012A, C
