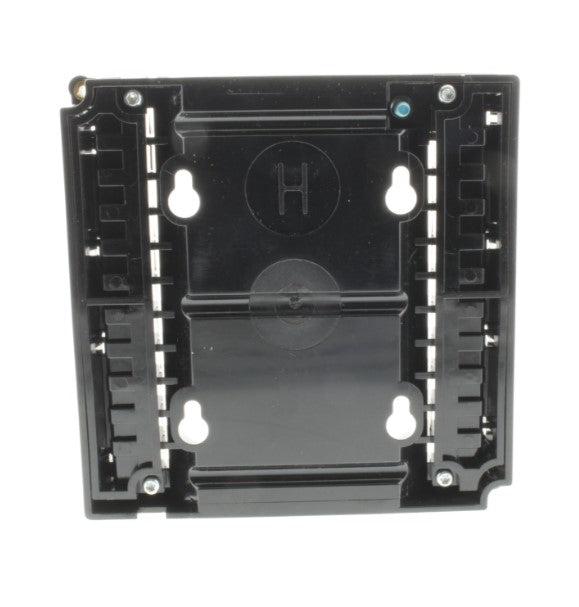

Honeywell Q7800A1005 - Base Wiring

MPN: Q7800A1005

Wiring base for HONEYWELL 7800 Series Burner Controllers

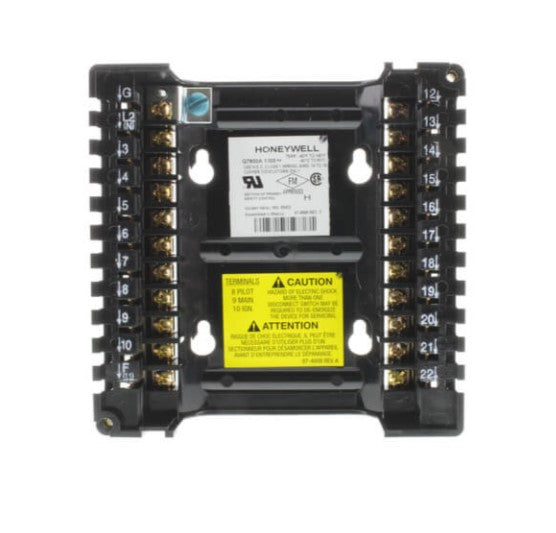

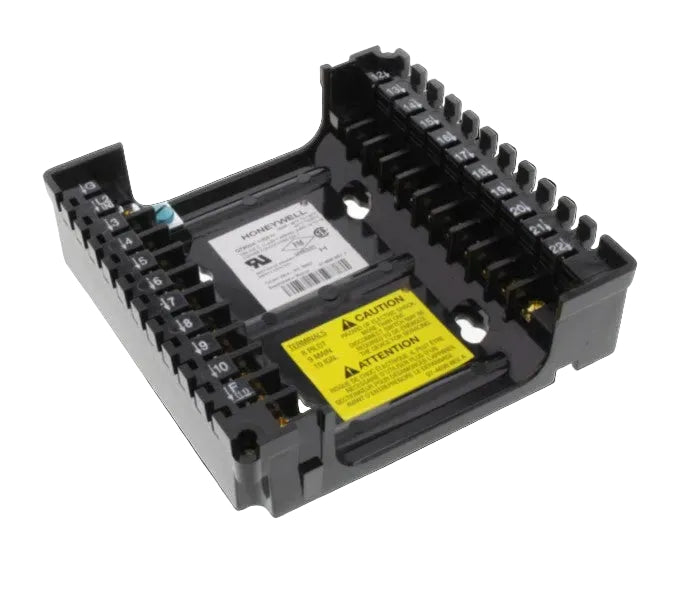

Quick-mount wiring subbase for all 7800 SERIES Relay Modules and S7830 Expanded Annunciator.

• Makes electrical connections for 7800 SERIES relay modules or S7830A Expanded Annunciator through bifurcated contacts.
• Provides terminals for field wiring.
• Twenty-two terminals.
