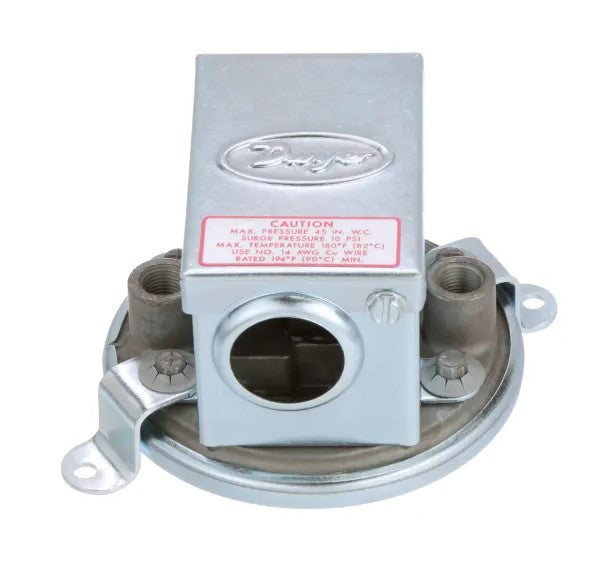

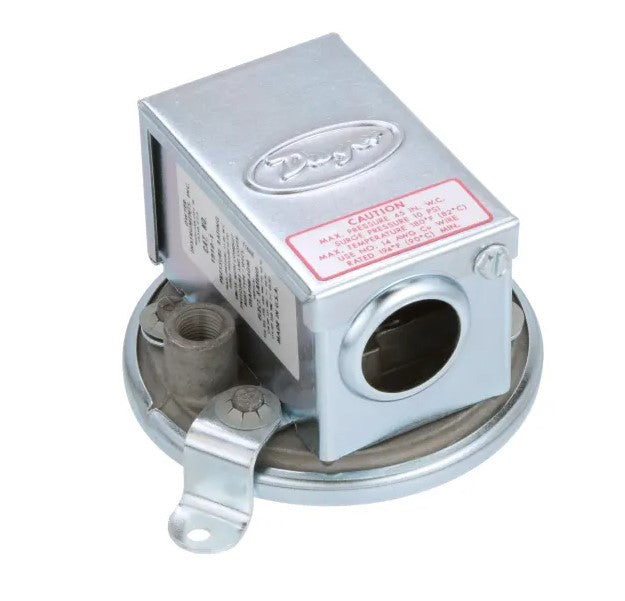

Dwyer 1910-1 - Pressure Switch
Dwyer 1910-1 - Pressure Switch
Regular price
$179.75 USD
Regular price
Sale price
$179.75 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
MPN: 1910-1
Dwyer - Operating Pressure Range: 0.4 - 1.6"wc
Features:
- Service: Air and non-combustible, compatible gases
- Wetted Materials: Consult factory
- Temperature Limits: -30 to 180°F (-34 to 82.2°C)
- Pressure Limits: 45 in w.c. (11.2 kPa) continuous, 10 psig (68.95 kPa) surge
- Switch Type: Single-pole double-throw (SPDT)
- Repeatability: +/-3%
- Electrical Rating: 15 A @ 120-480 VAC, 60 Hz. Resistive 1/8 HP @125 VAC, 1/4 HP @ 250 VAC, 60 Hz. Derate to 10 A for operation at high cycle rates
- Electrical Connections: 3 screw type, common, normally open and normally closed
- Process Connections: 1/8" female NPT
- Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations
- Set Point Adjustment: Screw type inside conduit enclosure
